2001 KHS Flite 800
Part Diary,
Part Technical Manual, Part Tips & Tricks
So my cousin Albert goes to Berkeley for undergrad is joins the cycling club. Through the club, he was able to order a bike through the Cal Cycling Team at a big discount. So he rides it around for a few years until he recently upgraded to a carbon fiber Kestrel. Apparently he is a one bicycle person and had no further need of the KHS. So on December 28, 2009, I brought it home, returning the bike back to the SF Bay Area.
5/27/2010 - Listed it on craigslist at noon, was sold by 6 pm - damn that went fast!.
Here are the specs:
Frame: 2001 KHS Flite 800, 54cm. Serial Number: K80 U01100091. Reynolds 853 tubing main tubes, tig welded. Black with yellow and silver decals.
Fork: Advanced Composite.
Natural carbon fiber with clearcoat finish.
Wheelset: Shimano WH-R535.
Tires: Vittoria Rubino Slick, 700 x 23C.
Cassette:
Shimano Ultegra CS-6500 9 speed. Hyperglide, 12-25T.
Cranks: Shimano Ultegra FC-6500,
53x39, 172.5mm, 130 BCD.
Bottom Bracket: TH Sealed bearing cartridge, 111mm spindle.
Front Derailer: Shimano Ultegra FD-6500, braze-on.
Rear Derailer: Shimano Ultegra RD-6500.
Lever/Shifters:Shimano Ultegra ST-6500 Flightdeck.
Chain: Shimano CN-HG93, Super Narrow Hyperglide.
Headset: Modus H550,
1-1/8" Threadless, black.
Stem: Modus, 1-1/8" threadless, 110mm, 26.0mm diameter. 73 degree, black.
Handlebar: Cinelli, 26.0mm, 41.5cm wide CTC. AL 6062 T6 Heat Treated, black. 25.0mm actual diameter.
Brakes: Shimano Ultegra BR-6500.
Pedal: Shimano PD-M520 SPD.
Seatpost: Ritchey Comp, 27.0mm. Aluminum, black.
Saddle: Selle
Italia SLR XP with Vanox rails, black.
Bottlecage: Specialized, Aluminum, black.
Ratio |
12 |
13 |
14 |
15 |
17 |
19 |
21 |
23 |
25 |
53 |
8.5 |
7.9 |
7.3 |
6.8 |
6.0 |
5.4 |
4.9 |
4.5 |
4.1 |
39 |
6.3 |
5.8 |
5.4 |
5.0 |
4.4 |
4.0 |
3.6 |
3.3 |
3.0 |

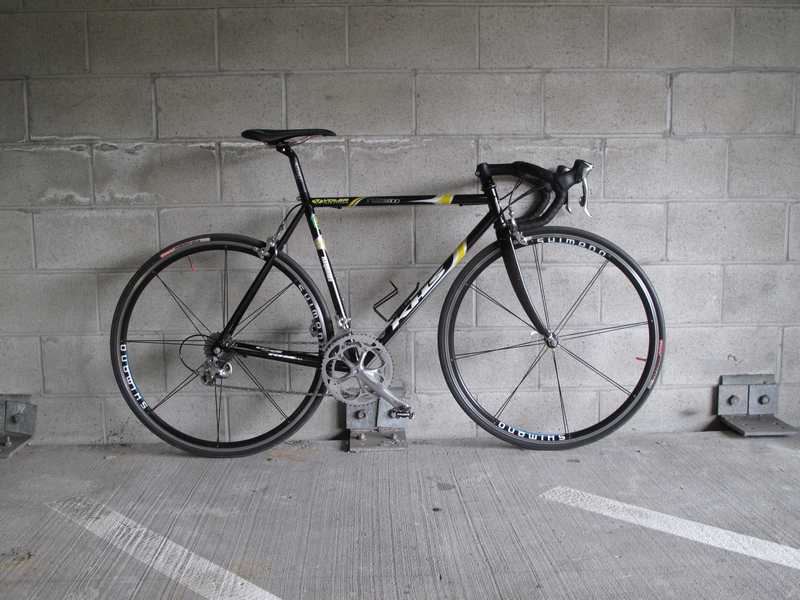

The bike weighs 21 lbs 1 oz as shown.
The following parts came with the bike that I am currently not using:
Pedals: LOOK PP296, Credit Agricole Pro Team edition.
Saddle: Selle
Italia with FeC Alloy rails,
red/black.
Seatpost: Generic aluminum, 27.0, silver.
