1998 Klein Mantra Comp
Part Diary,
Part Technical Manual, Part Tips & Tricks
It was the day after Christmas and I was at work and things were very quiet. During lunch I was browsing CL and through chance, came across an ad for a beautiful purple colored Mantra that appeared to look brand new. Since my first mountain bike was a Gary Fisher Joshua, I'm familiar with URT bikes of the mid-90s era. A Klein was probably a bit over my budget at the time, but I always like the unique design of these bikes. So I check out the bike after work and it indeed looked new and was barely ridden. It also had a nice Thomson seatpost, which is always a plus! So on December 26, 2012, I brought back a beautiful Mantra.
12/22/13 - I kept the Mantra at my parents house, so I would have a bike to ride when I'm in town. In an overall effort to reduce the number of bikes I have, I decided to sell the Mantra. So when I visited this year, I posted an ad on CL for the duration I was in town. Well, it sold pretty quickly, so mission accomplished.
Here are the specs:
Frame: 1998 Klein Mantra Comp, medium. Power Tubing main beam, Gradient stays, 135mm spacing. Serial Number: Circle K V05970116 = May 1997, 116th bike of that month. Blastberry chameleon with black rear.
Fork: Rock Shox Judy T2, 63mm travel, 1-1/8" threadless, black.
Front Hub: Shimano STX-RC HB-MC33, 32H.
Rear Hub: Shimano STX-RC HyperGlide compact cassettte FH-MC33, 32H.
Front Rim: Bontrager Mustang, E.R.D. 542, 32H, silver.
Rear Rim: Bontrager Mustang ASYM, E.R.D. 541, 32H, silver.
Tires: Bontrager Revolt ST, 26" x 2.1" front, 1.95" rear, folding bead.
Cassette:
Shimano HG50, 8spd, 11-30T.
Cranks: Sugino Impel, 42x32x20, 170mm, 104/58 BCD.
Bottom Bracket: Shimano BB-UN52, 113mm spindle.
Front Derailer: Shimano Deore LX FD-M567, 31.6mm clamp-on.
Rear Derailer: Shimano Deore XT RD-M739.
Brakes: Avid single digit 20, direct pull.
Brake Lever: Avid SD-1.9L.
Shifters: Shimano Deore STX RC RapidFire, SL-MC38.
Headset: Dia-Compe SA Aheadset, 27.0mm stack,
1-1/8" threadless.
Chain: Sachs PC-41.
Stem: Bontrager forged alloy, 5 degree rise, 1-1/8" threadless, 105mm, 25.4mm diameter.
Handlebar: Bontrager Comp II, 5 degree bend, 25.4mm diameter, black.
Grips: Bontrager, black.
Pedals: Shimano PD-M520 SPD, black.
Seatpost: Thomson SP-E109, 31.6mm x 367mm, zero setback, black.
Saddle: Bontrager FS+10 Race, black.
|
Ratio |
11 |
13 |
15 |
17 |
20 |
23 |
26 |
30 |
|
42 |
7.3 |
6.2 |
5.4 |
4.8 |
4.0 |
3.5 |
3.1 |
2.7 |
32 |
5.6 |
4.7 |
4.1 |
3.6 |
3.1 |
2.7 |
2.4 |
2.1 |
|
20 |
3.5 |
3.0 |
2.6 |
2.3 |
1.9 |
1.7 |
1.5 |
1.3 |

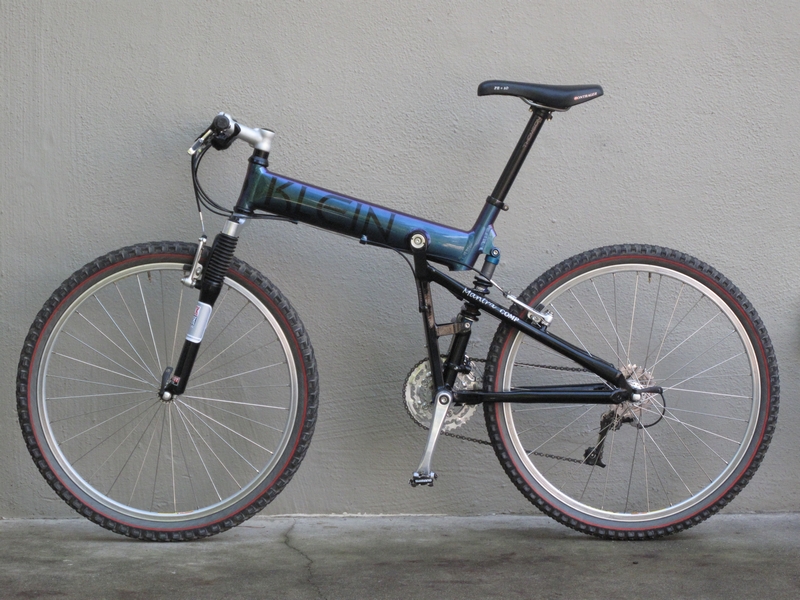

The bike weighs 27 lbs 0
oz as shown.
